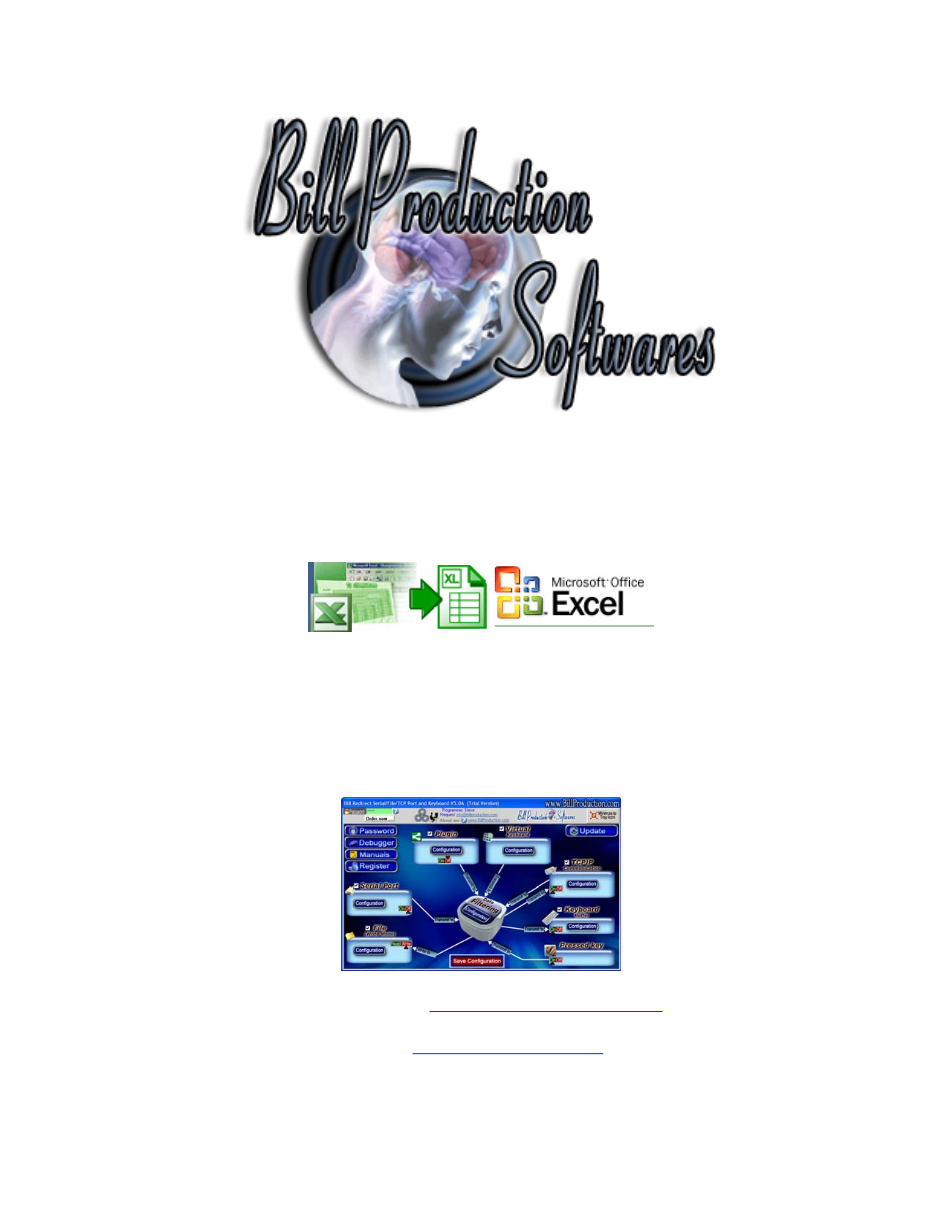

Bill Redirect Application
How redirect data to Microsoft Excel
via the keyboard buffer.
Documentation: 27/10/2009
Our Internet site:
Email:
info@BillProduction.com
1
Bill Redirect application support
all
version of Microsoft Excel !
This professional multi serial port application enables RS-232/TCP serial
peripherals to communicate with Microsoft Excel.
Bill Redirect allows
data received by your peripheral to be entered directly into Microsoft
Excel application as if it was typed in using the keyboard.
No additional hardware or programming required !
Supported Operating Systems:
Windows 98,Me,2000,3000,XP,NT4, Vista.
Simply the best Excel compatible application to connect your peripherals !
2
GENERAL INFORMATION
To configure this application you have to enter in the field password
www.billproduction.com
,
In the configuration options you have the possibility to change this password for what you
want.
To close this software, type END in the password field.
Custom Application Development
With over 15 years of experience in successfully providing Custom Application Development
solutions for over 300 customers, we have honed our processes and skills to cater to your
specific business needs.
To request a feature, a Customize option or any kind of Software:
Contact by email:
info@billproduction.com
If a problem persist or to do more
use our
Application configuration and integration assistance
It's free, fast
(usually the same day)
, and efficient !
Submit your case to
info@billproduction.com
and receive a customized solution !
3
This example shows Bill Redirect Application allows data received by a
Serial peripheral to be entered directly into Microsoft Excel application as if
it was typed in using the keyboard.
IMPORTANT
Don't install 'Bill Redirect Plugin for Microsoft Excel'
This module is not necessary if you use this method.
Step #1
(Download and install)
Download and install Bill Redirect application
Step #2
(General configuration)
Disable all except the
Serial Port
and
Keyboard Buffer
section.
Set to
ON
Keyboard Buffer
switch
.
Set to
OFF
Serial Port and Pressed key
switch
.
4
Step #3
(Keyboard configuration)
Press on button:
Configuration
Enter in field '
Target Window Name
' :
Microsoft Excel
5
Step #4
(Serial port configuration)
Press on button:
Configuration
Enter the
Serial Port Number
where your peripheral is connected.
Serial Port Configuration
: Enter the configuration of your peripheral.
Step #5
(Test)
Press on button:
OK
Press on button:
Save Configuration
Test
6
Step #6
(Optional configuration)
This optional step shows how you can call a macro command via a hotkey.
Example description:
call a macro command
Ctrl b
followed by the
data
received from your peripheral.
Press on button:
Data Filtering Configuration
Press on button:
ADD
In field 'Search' enter:
{ALL_RX}
In field 'Replace by' enter:
{CTRL}b{RX_DATA}
* To create a macro in Excel use the menu Tools - Macro .
..
7
Step #7
(Optional configuration)
This optional step shows how you can replace the
Enter
by a
Tab
at the end
of data.
With this possibility Excel move to the next column instead of the
next line after each data received by your peripheral.
Press on button:
Data Filtering Configuration
Press on button:
ADD
In field 'Search' enter:
{ASCII:13}
In field 'Replace by' enter:
{TAB}
Press on button:
ADD
In field 'Search' enter:
{ASCII:10}
In field 'Replace by' enter:
{ASCII:0}
8
Use the manual to see all the commands available:
