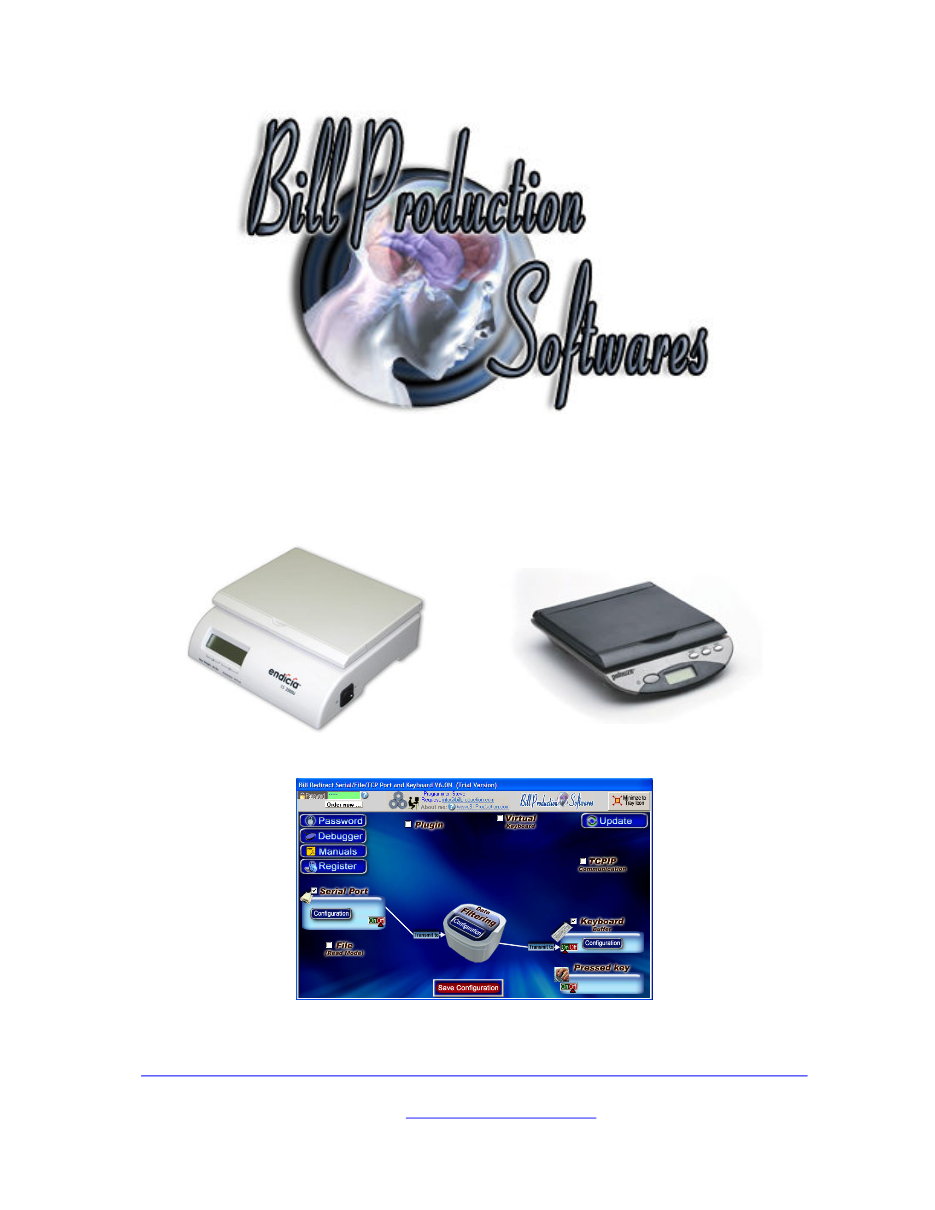

Bill Redirect Application
How redirect the weight of a USB Scale
(Supports several Postal Scales)
Postal USB Scale, Mettler Toledo PS60 PS90, Pitney Bowes, Fairbanks, X.J., CHARDER, Pelouze,
SANFORD, DYMO, Endicia, ELANE.XM, Elane Plus BT Bluetooth, Stamps digital USB postal scale
Use this documentation with the product : Bill Redirect Version 8.0L or more.
(Rev.:18/10/2012)
RS232 USB Balance and Scale Application
:
Email:
info@BillProduction.com
1
SOFTWARE
DESCRIPTION
Bill Redirect application supports several models of USB scales !
This professional application enables USB scales
who do not come with a serial port
driver
to communicate with your current Windows applications. Bill Redirect allows
information to be entered directly into Windows programs as if it was typed in using
the keyboard.
No programming or additional hardware required !
Supported Operating Systems:
Windows 98,Me,2000,3000,XP,NT4, Vista, Windows 7, Windows 8
Simply the best scale application available !
2
GENERAL INFORMATION
To configure this application you have to enter in the field password
www.billproduction.com
, In the
configuration options you have the possibility to change this password for what you want.
To close this
application, type
END
in the password field.
If a problem persist or to do more
use our
Application configuration and integration assistance
It's free, fast
(usually the same day)
, and efficient !
Submit your case to
info@billproduction.com
and receive a customized solution !
3
To redirect a USB Scale to keyboard buffer
Use this documentation ONLY if your Scale is USB
and do not come with a serial port driver
Step #1
(General configuration)
First download and install Bill Redirect application:
*To access the configuration, enter the 'Password' field:
www.billproduction.com
Disable all except the
Serial Port
and
Keyboard Buffer
section
Set to
OFF
Serial Port and Pressed key
switch
4
Step #2
(USB configuration)
Activate the option:
USB Scale Without Serial Port driver
Make sure that your product is plugged and power on
Wait 30 seconds
Choose the
Output Format
* You can enter your own format, example to receive the weight with unit:
{lbs} lbs{ENTER}
Set the option “Send weight” to:
When is stable
If after this time it’s always written “Not Found” in the field status,
please contact our technical support:
info@billproduction.com
include with your email: Your scale
Manufacturer and Model
5
Step #3
(Keyboard configuration)
Press on button
:
Configuration
Activate the option:
API KB user 32
The QWERTY option:
Select this option if you use a QWERTY keyboard.
*If your keyboard is QWERTY you can see just across the letter Q the letters WERTY
The AZERTY option:
Select this option if you use a AZERTY keyboard.
*If your keyboard is AZERTY you can see just across the letter A the letters ZERTY
The Target Windows Name
(optional)
:
With this option you can activate automatically a target windows.
Enter the title of the window where you want redirect the data
* If you enter nothing, the application redirect the data to the current window.
* You can enter just a part of the title, for example if the title is “
our application application
” you can enter just a part of
the title for example:
our application
The U. Case option:
The application can switch all lower case characters automatically to upper case.
Step #4
(Test stable mode)
TEST YOUR SCALE
Open the Windows
NotePad
Put something on the scale
The weight should be written in the
NotePad
when it is stable.
6
Step #5
(
Optional:
Use a Virtual button to receive the weight)
In “Serial Port Configuration” set option “Send weight” to:
On demand
Press on button
:
Configuration
To add a New button, press on button:
Add
7
Step #6
(
Optional:
Use a Virtual button to receive the weight)
At this step you can see a button like this one:
*To see the configuration of the button activate the upper left check box
Enter in field “
String to send if this button is push”
:
{USB_TX[REQWEIGHT]}
Button Text:
Use this field to set what you want to see on the button.
Button Position:
Use this section to change button position.
* Tips: Activate the NumLock Press the button and use the number 4,6,2 and 8 to change the position.
Button Size :
Use this section to change the button size.
8
Step #7
(
Optional:
Use a Virtual button to receive the weight)
Example:
Window Title
(optional)
:
Option “Window Title” Description: With this option each button of your Virtual Keyboard can appear and disappear
when a specific window title is activate.
*Example: If the window title is “Application weight expert Version 1.2b” and in the field “Window Title” you enter
“Weight EXPERT” then each time that this window take the focus this button is visible.
* To enter more of one window title, separate the title name by a comas:
Example: Weight EXPERT, NOTEPAD, PAGE COUNT
* If this the field
“Window Title”
is blank, then the button is always visible.
Color
(optional)
:
Use this option to change the button back color.
Font
(optional)
:
Use this option to change the button text font.
(optional)
:
Use this section to:
Paste
the picture from the Clipboard to the button.
Clear
the picture button.
Load
the picture button.
9
Step #8
(
Optional:
Use a hotkey to request the weight)
This
optional
step will allow you to request the weight from your scale via a hotkey for example F11.
Section “Pressed key” set the switch to position:
On
Press on:
Data Filtering Configuration
Enter in field “Prefix”:
{PAUSE.5SEC}
Press on:
ADD
Enter in field “Search”:
{F11}
* You can replace the hotkey
{F11}
by what you want example
{ALT}{F10}
Enter in field “Replace by”:
{TX_KEYB[{CTRL_UP}{ALT_UP}{USB_TX[REQWEIGHT]}]}
10
Step #9
(Test: Virtual Button / Hotkey to request the weight)
TEST YOUR SCALE
Press on button:
Run
Open the Windows
NotePad
Put something on the scale
Press on your:
Virtual Button
The weight should be written in the
NotePad
when you press the button.
If a problem persist or to do more
use our
Application configuration and integration assistance
It's free, fast
(usually the same day)
, and efficient !
Submit your case to
info@billproduction.com
and receive a customized solution !
11
Step #10
(
Optional:
To see the weight in real-time directly on the virtual button)
In “Serial Port Configuration” set option “Send weight” to:
Continuous
Set the “Keyboard Buffer” switch to:
OFF
Press on button:
ADD
In the field “Search” enter:
{USB_RX}
In the field “Replace by” enter:
{TX_BUTTON_TXT[0, RX_DATA]}
Section “Virtual Keyboard” Configuration “Button Configuration” edit this option:
String to send if this button is push:
{TX_KEYB[{BUTTON_TXT[0]}]}
12
Step #11
(Test: Weight in real-time directly on the virtual button)
TEST YOUR SCALE
Press on button:
Run
Open the Windows
NotePad
Put something on the scale
Press on your:
Virtual Button
The weight should be written in the
NotePad
when you press the button.
If a problem persist or to do more
use our
Application configuration and integration assistance
It's free, fast
(usually the same day)
, and efficient !
Submit your case to
info@billproduction.com
and receive a customized solution !
13
For more documentation visit:
To receive the data in real time to a existing Excel file,
install our Excel Plugin:
Use this documentation:
If a problem persist or to do more
use our
Application configuration and integration assistance
It's free, fast
(usually the same day)
, and efficient !
Submit your case to
info@billproduction.com
and receive a customized solution !
14
PERSONALIZE
You can personalize our application with your company name, logo, skins, password, directory.
..
With this
possibility you can distribute our application with your company information !
The end user, will think that
you are the creator of this application !
- To Extract the current configuration setting, just type in the field password:
SAVE_SKIN
- After this action, a message box appear to indicate where is the configuration.
- Now you can modify this configuration files for what you want (Skin*.*).
- To re-load your skin modification type in the password field:
LOAD_SKIN
*At startup our application load automatically your configuration
*To open the mouse position monitor, type MOUSE in the field password and move the main window in the left top corner.
How change the default configuration directory:
*By default the configuration of our application is in the directory: C:\BillProduction.CFG\
To change this directory:
- In the same directory that our .exe application or in your C:\ modify the file:
BPCFGDIR.TXT
* This file contain the default configuration directory.
* Several BillRedirect applications in differents computers, can use the same directory over the network. If the
configuration changed in a computer, then other computers automatically synchronize in the next 5
seconds.
All the configuration is by default in C:\BillProduction.cfg\*.* then to duplicate the configuration from a computer to another,
just copy this directory.
* Don’t forget to close Bill Redirect on target computer before copy the configuration.
Step by step how rebuild your own installation package
- Unzip
in to your
C:\BillRPackage\
- Copy your default configuration from your
C:\BillProduction.cfg\*.*
to
C:\BillRPackage\
- Rename the file
Setup.exe
to
Z.EXE
- Create the file
Setup.bat
... this file contain:
@echo off
md c:\BillProduction.CFG
copy *.cfg c:\BillProduction.CFG
copy skin*.* c:\BillProduction.CFG
copy *.TAG c:\BillProduction.CFG
copy *.BMP c:\BillProduction.CFG
copy *.TXT
c:\BillProduction.CFG
Z.EXE
- Zip all files in
C:\BillRPackage\
to
My_Package.ZIP
*** Your package is ready !
15
