Documentation: 29/04/2013

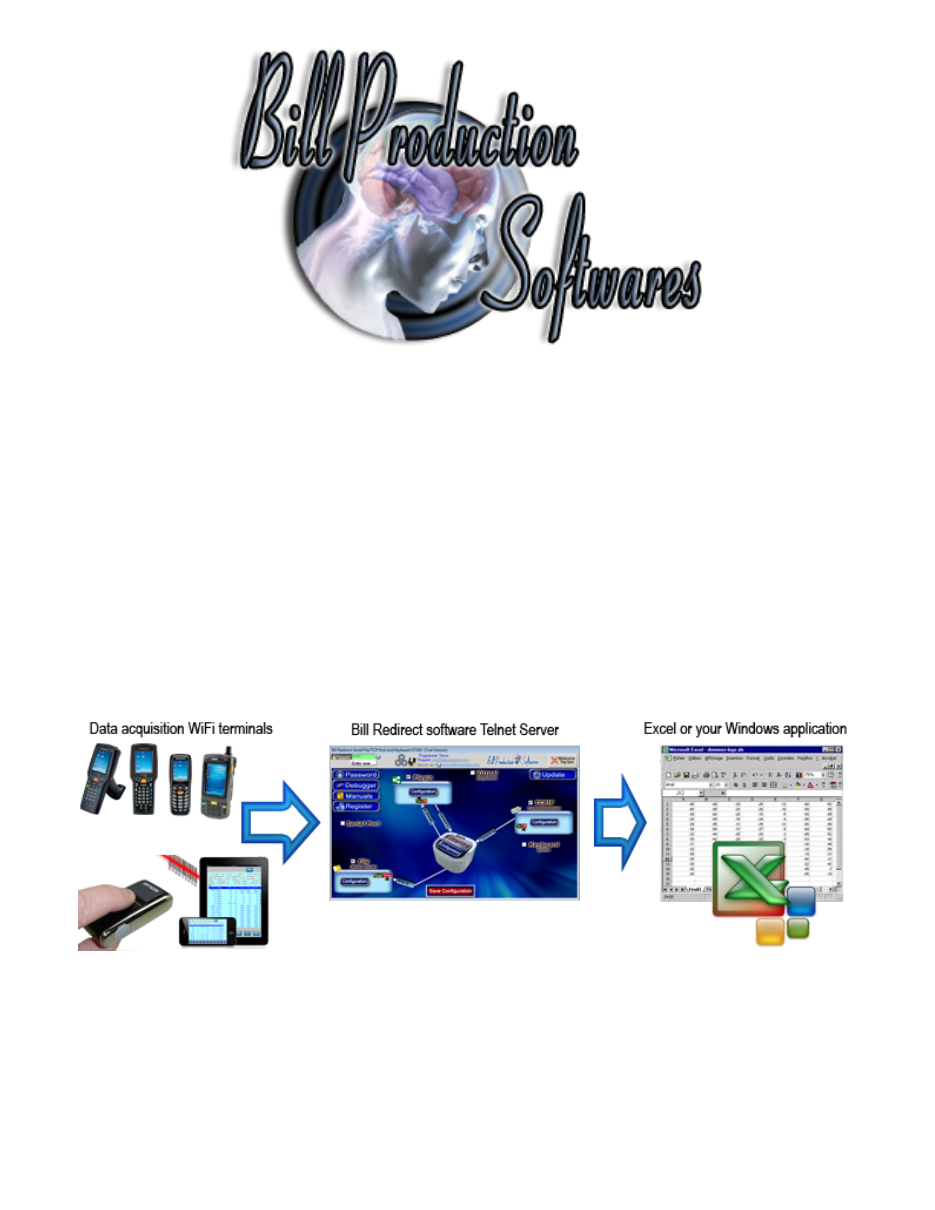

Create a Telnet Server with Bill Redirect Application
to manage multiple data acquisition WiFi terminals
Perfect to take your inventory, data acquisition or shop floor data collection !
Use this documentation with the product : Bill Redirect 7.0W or more
Windows Telnet Server for your mobile devices,
RF Terminal data acquisiiton Barcode scanners and any wireless environments data collection devices.
Email:
info@BillProduction.com
If a problem persist or to do more
use our
Application configuration and integration assistance
It's free, fast
(usually the same day)
, and efficient !
Submit your case to
info@billproduction.com
and receive a customized solution !
Wavelink?? Telnet Client Terminal Emulation Supported Devices
Wavelink Universal
Avery Dennison (Paxar)
6039
CipherLab 9400 series
CipherLab 9500 series
Datalogic 315
Datalogic 325
Datalogic 335
Datalogic 345
Datalogic 4200
Datalogic 4620
Datalogic Elf
Datalogic Falcon 4400
Datalogic J Series
Datalogic Kyman
Datalogic Memor
Datalogic Pegaso
Datalogic R10/R12
Datalogic R7
Datalogic Rhino-NET
Datalogic Skorpio 2
Denso BHT700 1
Fujitsu iPad 4
Honeywell (HHP)
7400
Honeywell (HHP)
7600
Honeywell (HHP)
9500
Honeywell (HHP)
9900
Intermec 700 Color
Intermec CK3
Intermec CK30
Intermec CK31C
Intermec CK61
Intermec CN2A
Intermec CN2B
Intermec CN3
Intermec CN30
Intermec CV30
Intermec CV60
Janam XG100
LXE HX2
LXE MX3X
LXE MX7
LXE MX8
LXE MX9
LXE VX3X
LXE VX6
LXE VX7
Metrologic 5700
Motorola (Symbol) ES400
Motorola (Symbol) FR6000
Motorola (Symbol) FR68
Motorola (Symbol) HC700
Motorola (Symbol)
LRT3800
Motorola (Symbol) MC1000
Motorola (Symbol) MC17
Motorola (Symbol) MC3000
Motorola (Symbol) MC3100
Motorola (Symbol) MC35
Motorola (Symbol) MC50
Motorola (Symbol) MC55
Motorola (Symbol) MC65
Motorola (Symbol) MC70
Motorola (Symbol) MC75
Motorola (Symbol) MC9000
Motorola (Symbol) MC9500
Motorola (Symbol) MK1100
Motorola (Symbol) MK1200
Motorola (Symbol) MK2000
Motorola (Symbol) MK2200
Motorola (Symbol) MK4000
Motorola (Symbol) MK500
Motorola (Symbol) MT2000
Motorola (Symbol)
PDT3100
Motorola (Symbol)
PDT3540
Motorola (Symbol)
PDT6100
Motorola (Symbol)
PDT6800
Motorola (Symbol)
PDT7000
Motorola (Symbol)
PDT7200
Motorola (Symbol)
PDT7500
Motorola (Symbol)
PDT8000
Motorola (Symbol)
PDT8100
Motorola (Symbol)
PPT2800
Motorola (Symbol) PPT8800
Motorola (Symbol) SPT1700
Motorola (Symbol) SPT1800
Motorola (Symbol) VC5000
Motorola (Symbol) VC6090
Motorola (Symbol) VRC3900
Motorola (Symbol) VRC4000
Motorola (Symbol) VRC6900
Motorola (Symbol) VRC7900
Motorola (Symbol) VRC8900
Motorola (Symbol) WSS1000
Motorola (Symbol) WT4000
Palm V
Psion-Teklogix 7525 Workabout Pro
Psion-Teklogix 7527 Workabout Pro
2
Psion-Teklogix 7535 G2
Psion-Teklogix 8525
Psion-Teklogix IKON
Speakeasy SpeakeasyCE
Speakeasy SpeakeasyWin
Telxon PTC960
Bill Redirect Application Telnet Server perfect to take your inventory, data acquisition or shop floor data
collection.
This documentation demonstrate how collect data acquisition with an iPhone, iPad, Windows Mobile device,
Windows CE device or with any WiFi terminal with a Telnet Client
Step #1
(Installation)
Download and install Bill Redirect application
Step #2
(Use this step if your data acquisition terminal is an iPhone or iPad)
iPhone / iPad configuration
- Install in your device this application:
Mocha Telnet Lite By MochaSoft
To read barcode, you must buy an
OPTICON 2002
or a
Unitech MS910
Barcode Scanner:
OPTICON 2002:
OPTICON 2002:
Unitech MS910:
* More information at step #9
Step #3
(Use this step if your data acquisition terminal is a Windows mobile or CE)
- Install in your device:
Wavelink Telnet Client
* The company Datalogic
includes Wavelink application with many of their terminals.
* More information at step #10
Step #4
(Use this step for all other data acquisition devices.)
- Install in your device a:
Wavelink Telnet Client or any Telnet Client Application
* The company Datalogic
includes Wavelink application with many of their terminals (free).
This solution can also work's with Adroid devices like phone and tablet.
Solution: Install a Telnet Client application in your device from Apps Android Market
Step #5
(General configuration)
- Disable all except the
TCPIP
and
File
section.
- Set the TCPIP switch to:
Off
- Set the File switch to:
Write
Step #6
(File configuration)
- Press on: File Configuration
- Enter in File:
The directory and destination filename
Example:
C:\DATA_ACQUISITION.XLS
* You must enter a file name that does not exist'
our application will automatically create it.
To receive the data in real time to a existing Excel file,
install our Excel Plugin:
Use this documentation:
Step #7
(TCPIP Configuration)
- Press on button:
TCPIP Configuration
- Select the TCP mode :
Server
Take in note the
IP address
of your computer.
- Enter in field Port:
23
- Check the option:
Telnet Server manage
Step #8
(Configuration of question(s) that will be displayed)
- Press on button:
Question(s)
Use this screen to configure the question(s) that will be displayed on your data acquisition Terminal(s).
In this screen, 00 is the number of terminals currently connected.
- On main screen press on button:
Save Configuration
Step #9
(Mocha Telnet for iPhone and iPad configuration)
Start Mocha Telnet Lite in your iPhone or iPad
- On menu press on:
Add another Server
- Press on:
New' Add a configuration
- Enter in 'IP address':
The address taken in note at
Step #7
- Enter in 'Port':
23
- On the menu press on:
Connect
- Press on the
IP address
and
Test
'
Step #10
(Configuration of device with Wavelink telnet client)
- First, install Wavelink Telnet on your device.
- Start Wavelink telnet
- In menu 'Configure' press on 'Host Profiles'
- Enter in 'Password' field: system
- Press on: Add
-Enter in 'Alias' : BillProduction
- Enter in 'Address':
The address taken in note at
Step #7
Enter in Port:
23
Use the Emulation:
VT100
*** Important,
don't check
the option "Use SSH encryption"
- Press on:
OK
- Press on:
Save
- Press on:
Done
-
Test '
