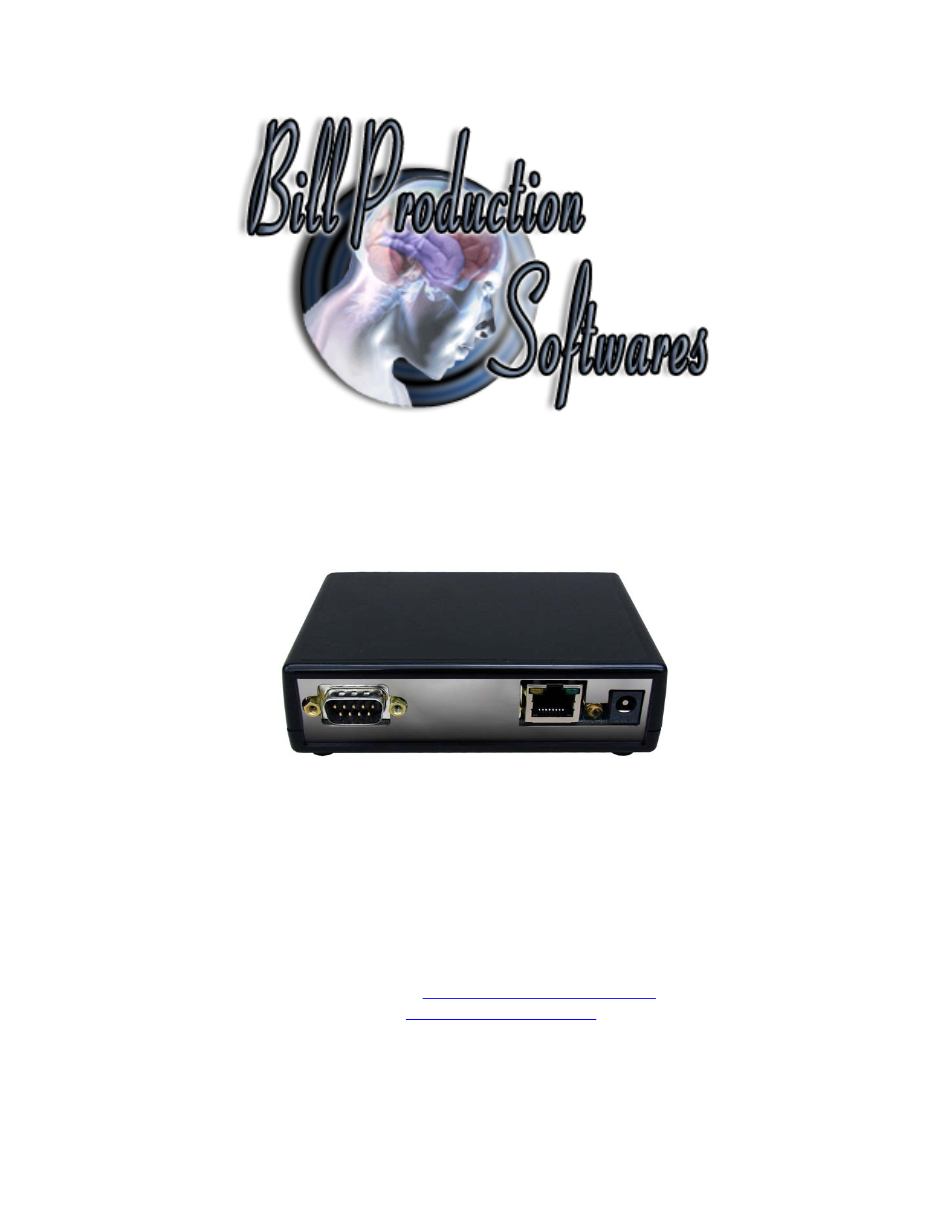

Bill Redirect Application

How To Schedule the opening and closing relays

with the Symcod product Bridge-IP

Supported Operating Systems:

Windows 98,Me,2000,3000,XP,NT4, Vista.

This tutorial shows how you can schedule opening/closing Bridge-IP relays

with Bill Redirect application at the time and frequency that you specify.

Use this documentation with the product : Bill Redirect Version 6.0C or more.

(Rev.: 15/04/2009)

Our Internet site:

http://www.billproduction.com/

Email:

info@BillProduction.com

GENERAL INFORMATION

To configure this application you have to enter in the field password

www.billproduction.com

, In the

configuration options you have the possibility to change this password for what you want.

To close this

software, type END in the password field.

Application configuration and integration assistance

It's free, fast

(usually the same day)

, and efficient !

Submit your case to

info@billproduction.com

and receive a customized answer !

Custom Application Development

With over 15 years of experience in successfully providing Custom Application Development solutions for

over 300 customers, we have honed our processes and skills to cater to your specific business needs.

To request a feature, a Customize option or any kind of Software:

Contact by email:

info@billproduction.com

Step by Step Configuration

This tutorial shows how you can schedule opening/closing Bridge-IP relays

with Bill Redirect application at the time and frequency that you specify.

Perfect to control door lock with a schedule, Bell systems, light,

motor, clock display

synchronisation, messages display panel '

Step #1

(General)

Disable all except the

File

section

Set File to

Read Mode

Step #2

(File Configuration)

Press on button File:

Configuration

Enter in field 'File:' :

C:\BillProduction.CFG\XPEFILE.TXT

Step #3

(Add Bridge IP Commands)

Press on:

Configuration

Press on button:

ADD

In the field 'Search' enter:

ALLRELAY01ON

In the field 'Replace by' enter:

{TX_UDP[{ASCII:254}{ASCII:248}{ASCII:8}><T1E,255.255.255.255,1024,5]}

Press on button:

ADD

In the field 'Search' enter:

ALLRELAY01OFF

In the field 'Replace by' enter:

{TX_UDP[{ASCII:254}{ASCII:248}{ASCII:8}><T1D,255.255.255.255,1024,5]}

Press on button:

ADD

In the field 'Search' enter:

ALLRELAY02ON

In the field 'Replace by' enter:

{TX_UDP[{ASCII:254}{ASCII:248}{ASCII:8}><T2E,255.255.255.255,1024,5]}

Press on button:

ADD

In the field 'Search' enter:

ALLRELAY02OFF

In the field 'Replace by' enter:

{TX_UDP[{ASCII:254}{ASCII:248}{ASCII:8}><T2D,255.255.255.255,1024,5]}

* To control the relay of a specific Bridge IP replace 255.255.255.255 by the Bridge IP address.

* To see all possible Bridge IP commands, please consult the manual Symcod Bridge IP manual.

* To control Door Lock access with a user list validation and with a schedule, use the Relay #1 for user

access and the relay #2 for the schedule.

* You can also control the Bridge IP relays via the Virtual Keyboard !

Step #4

Download and copy this file:

http://www.billproduction.com/BillRDoAction.exe

to your directory:

C:\BillProduction.cfg\

Step #5

(Windows Microsoft Task Scheduler)

Windows XP

** If you use Windows Vista, go to Step 7

Press on:

Control Panel/Scheduled Tasks

Select:

Add Scheduled Task

Press browse and locate the file:

C:\BillProduction.cfg\BillRDoAction.exe

Select how often you would like to perform the task.

Select the time and the days of the week and press next.

On the final screen, put a checkmark the box that says

'Open advanced properties for this task when I press Finish'

and then press finish.

Step #6

(Windows Microsoft Task Scheduler)

Windows XP

Now we will see the advanced properties window

Replace the word

command

by your command(s)

Example to OPEN all Bridge IP relay #02 replace the

command

by:

ALLRELAY02ON

Example to CLOSE all Bridge IP relay #02 replace the

command

by:

ALLRELAY02OFF

* To see all possible Bridge IP commands, please consult the manual Symcod Bridge IP manual

C:\BillProduction.cfg\BillRDoAction.exe

command

C:\BillProduction.cfg\

Step #7

(Add Scheduled Task)

Windows Vista

Press on:

Control Panel/Administrative Tools/Task Sheduler

Press on the 'Create Task' Action item ' This will open the Create Task Window.

Press on the Triggers tab press on the 'New' box.

Select how often you would like to perform the task.

Select the time and the days of the week and press next.

Press on button:

Save Configuration

TEST

Step #8

(Add Scheduled Task)

Windows Vista

Press on the Actions tab press on the 'New' box.

Press browse and locate the file:

C:\BillProduction.cfg\BillRDoAction.exe

and press on the Open button.

Replace the word

command

by your command(s)

Example to OPEN all Bridge IP relay #02 replace the

command

by:

ALLRELAY02ON

Example to CLOSE all Bridge IP relay #02 replace the

command

by:

ALLRELAY02OFF

* To see all possible Bridge IP commands, please consult the manual Symcod Bridge IP manual

C:\BillProduction.cfg\BillRDoAction.exe

command

For more documentation visit:

http://www.billproduction.com/documentation.html

If a problem persist use the

Application configuration and integration assistance

It's free, fast, and efficient !

Submit your case to

info@billproduction.com

and receive a customized answer !

PERSONALIZE

You can personalize our application with your company name, logo, skins, password, directory.

With this

possibility you can distribute our application with your company information !

The end user, will think that

you are the creator of this application !

- To Extract the current configuration setting, just type in the field password:

SAVE_SKIN

- After this action, a message box appear to indicate where is the configuration.

- Now you can modify this configuration files for what you want (Skin*.*).

- To re-load your skin modification type in the password field:

LOAD_SKIN

*At startup our application load automatically your configuration

*To open the mouse position monitor, type MOUSE in the field password and move the main window in the left top corner.

How change the default configuration directory:

*By default the configuration of our application is in the directory: C:\BillProduction.CFG\

To change this directory:

- In the same directory that our .exe application or in your C:\ modify the file:

BPCFGDIR.TXT

* This file contain the default configuration directory.

* Several BillRedirect softwares in differents computers, can use the same directory over the network. If the

configuration changed in a computer, then other computers automatically synchronize in the next 5

seconds.

All the configuration is by default in C:\BillProduction.cfg\*.* then to duplicate the configuration from a computer to another,

just copy this directory.

* Don't forget to close Bill Redirect on target computer before copy the configuration.
