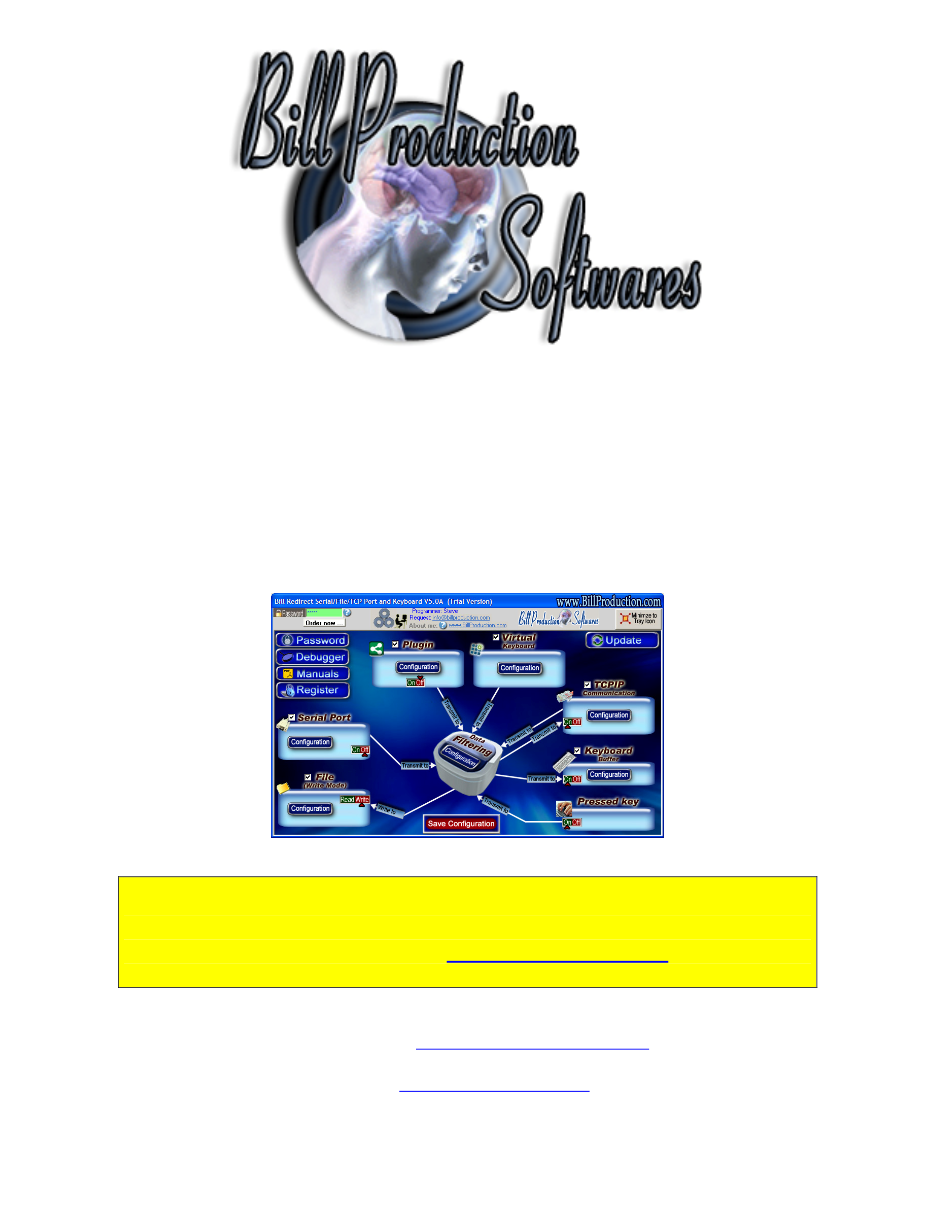

Bill Redirect

Send Bioscrypt Fingerprint V-Pass reader

numbers directly in your existing application application

Documentation: 16/08/2009

Use this documentation with the product : Bill Redirect 5.0J and more

Application configuration and integration assistance

It's free, fast, and efficient !

Submit your case to

info@billproduction.com

and receive a customized answer !

Our Internet site:

Email:

info@BillProduction.com

This documentation demonstrate how

Send Bioscrypt Fingerprint V-Pass reader

numbers directly in your existing application application

The following instructions apply to:

Bioscrypt Fingerprint V-Pass reader

Step #1

Install and Start the application

VeriAdmin

This application is include with your Bioscrypt V-Pass reader

To Configure the Unit Parameters

Select the option:

Communication

Enter in the field 'Assign Uni Network ID':

0

Select the option:

0

??

Host 232/Aux 232 (RJ11)

Set the 2 Baud options to:

57600

Press on button:

Apply

Select the option:

Verifiction Response

Check the 2 options:

Always (with ID)

Press on button:

Apply

Close this software:

VeriAdmin

Step #2

Download and install Bill Redirect application

Step #3

Disable all except the

Serial Port

and

Keyboard Buffer

section.

Set to

OFF

Serial Port and Pressed key

switch

.

Step #4

Press on button:

Configuration

.

Enter the

Serial Port Number

where your Bioscrypt V-Pass reader is connected

The Serial Port Configuration is:

Bauds:

57600

Parity:

None

Databits:

8

StopBits:

1

Timeout:

.3

Step #5

Press on button:

Configuration

Press on button:

Add

Enter in this field:

{START_WITH}{ASCII:64}

Enter in this field:

{CNV_BIOSCRYPT[RX_DATA]}{ASCII:13}

Step #6

Enable the section:

Virtual Keyboard

Press on button:

Configuration

Step #7

Press on button:

Add

Enter in the field 'Button Text':

Mode Enrollment

Enter in the field 'String to send ' is push':

{SERIALPORTNUMBER[0]}

Enter in the field 'Window Title':

VeriAdmin

Move this button on:

The top right in your Windows

Step #8

Press on button:

Add

Enter in the field 'Button Text':

Mode Reader

Enter in the field 'String to send ' is push':

{SERIALPORTNUMBER[1]}

Enter in the field 'Window Title':

VeriAdmin

* Replace the number

1

by the Serial Port Number where your Bioscrypt V-Pass reader is connected

Move this button on:

The top right in your Windows

(just across the first button)

Step #9

On main screen Press on button:

Save Configuration

Press on button:

Minimize to Tray Icon

Open the Windows

NotePad

At this step If your configuration is correct

you can see the each Finger number appear in the NotePad

To enroll a new finger

Open the software:

VeriAdmin

Press on button:

Mode Enrollment

Do the enrollment

To return in mode Reader

Press on button:

Mode Reader

Close the software:

VeriAdmin

To send Bioscrypt number directly in a field of another application and press on a button, use

the command

TX_FIELD

and

CLICK_BUTTON

commands

Example

At Step #5:

{TX_FIELD[AppName,22,{CNV_BIOSCRYPT[RX_DATA]}]}{CLICK_BUTTON[AppName,131]}

For more information, consult the product manual:

Optional

: Create a log file (Date, Time, UserNumber) readings made by the V-Pass scanner.

Press on button:

Configuration

Press on button:

Add

Enter in this field:

{ALL_RX}

Enter in this field:

{TX_FILE[C:\LOG_VPASS.TXT,{CURDATE:MM-DD-YYYY}{ASCII:9}{CURTIME}{ASCII:9}RX_DATA]}RX_DATA

If you want log file and not receive the number via the keyboard, just uncheck the section Keyboard Buffer.

On main screen Press on button:

Save Configuration

Press on button:

Minimize to Tray Icon

At this step If your configuration is correct

you can see the each Finger number appear in the file:

C:\LOG_VPASS.TXT
